Description

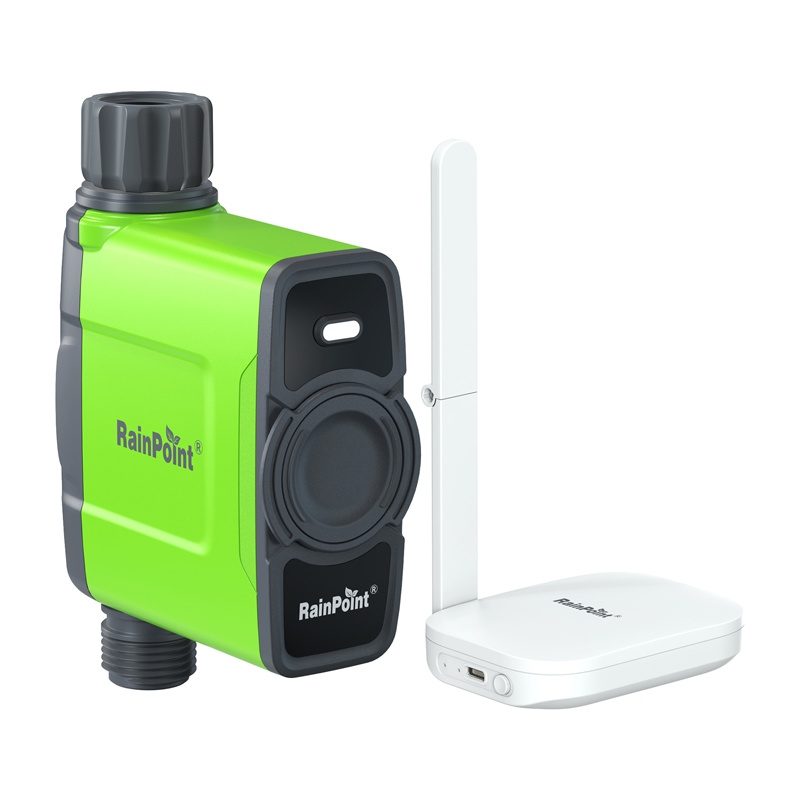

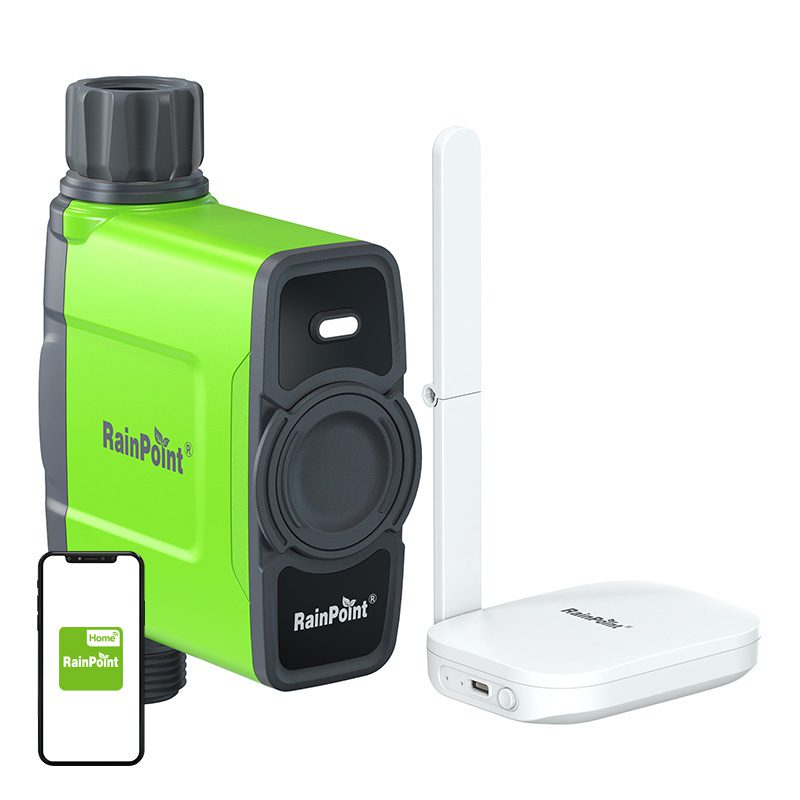

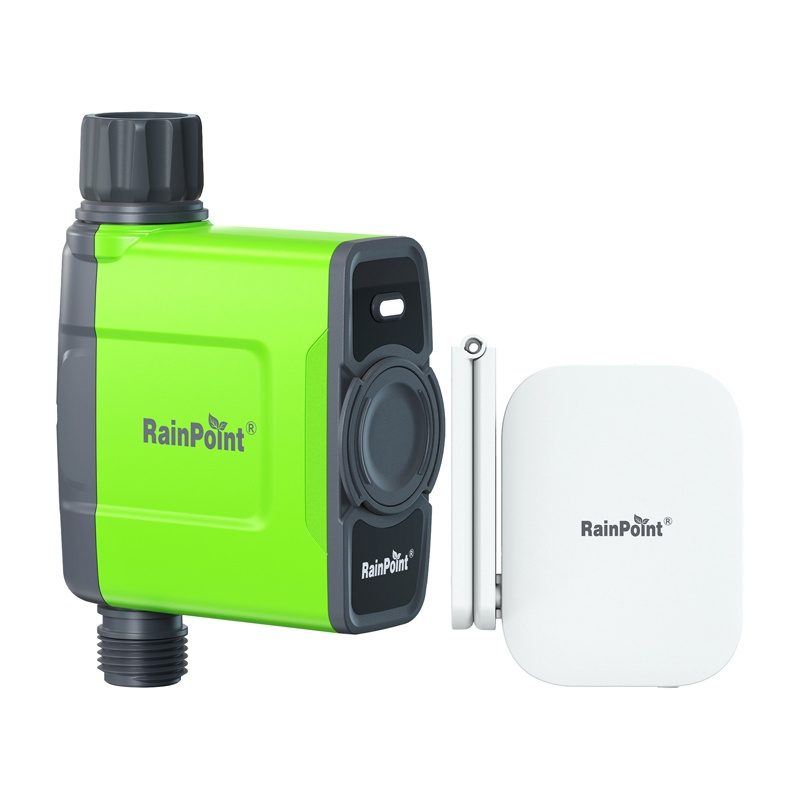

RainPoint Wifi 1-zone irrigation controller with gateway
Get full control over watering your garden with the RainPoint 1-zone controller with WiFi module (Wireless Fidelity, a wireless communication technology). The device works with the RainPoint Home app, offering you the ability to remotely manage your watering schedule. You’ll also operate it with Google Assistant and Amazon Alexa voice assistants. With different modes of operation, a built-in flow meter and automatic watering delay in case of rain, watering becomes convenient and economical.
Convenience with schedules
The controller offers 3 watering modes and as many as 5 frequencies, so you can customize your watering schedule according to the type of plants and the season. It’s ideal for flower beds as well as vegetable beds or lawn.
Control from the app
With the RainPoint Home app, you gain remote access to your watering schedules. You can set up to several daily schedules, delay watering due to rain, and manually control the operating time – from 1 minute up to 12 hours.
Range of up to 250 meters
A Wi-Fi gateway is included, which provides a stable connection over a distance of up to about 250 meters in open spaces. This allows you to easily manage the watering of a large garden from inside the house.
Voice control
The device works with Amazon Alexa and Google Assistant. Just speak a voice command to start or stop watering in the selected zone.
Save water and money
The built-in flow meter allows you to monitor your water usage in real time. This will not only help you take better care of your plants, but also optimize your water consumption, saving you money on your bills.
All-weather resistant
Improved design with brass entry and built-in filter guarantees reliable operation even in harsh outdoor conditions. The IP65 (Ingress Protection, a degree of protection against dust and water) rated housing protects the electronics from rain, dust and snow, ensuring a long life for the device.
Included:
- 1-zone irrigation controller
- Wi-Fi gateway
- USB-C cable (Universal Serial Bus Type C, a universal connector for data transfer and powering devices)
- User manual
- Quick start guide
General
Manufacturer | RainPoint |
---|---|
Model | HTV145FRF+HWG023WBRF |
Application | RainPoint Home |
Wi-Fi controller
Range between gateway and controller | In an open area up to 250 m |
---|---|
Operating pressure | 0.5-8 bar |
Water flow rate | 5-35 l/min |
Operating temperature range | 3°C-50°C |
Power supply | 4× AA alkaline batteries (not included) |
Water resistance level | IP65 |
Water inlet | BSP (British Standard Pipe, a standard of pipe threads used in water installations) – for 3/4″ or 1″ taps |
Wi-Fi gateway
Range between gateway and router | 220 m |
---|---|
Power supply | USB-C plug adapter |
Operating temperature range | 3°C-40°C |
WiFi bandwidth | 2.4 GHz |
