Garden solenoid valves DC 1″ RainPoint

Description

Garden solenoid valves DC 1″ RainPoint

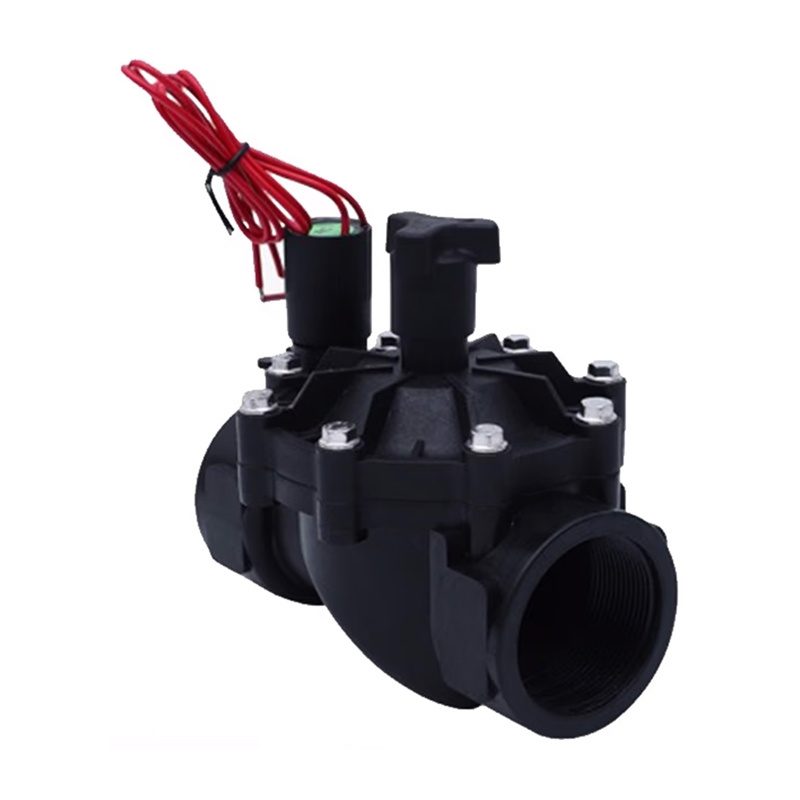

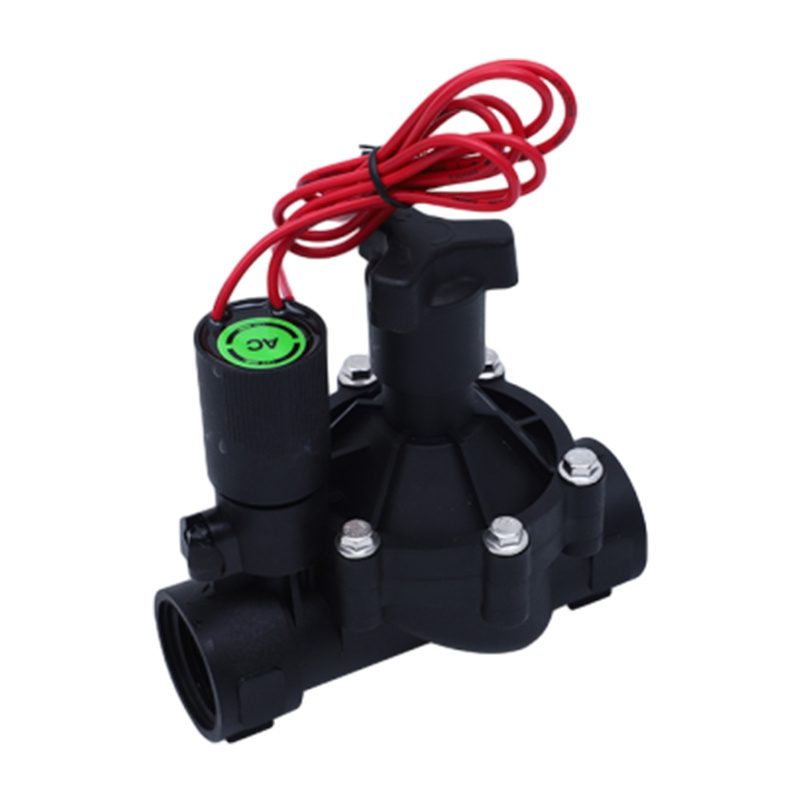

The RainPoint solenoid valve is designed to efficiently control water flow in low-flow irrigation systems. It works well in gardens, greenhouses and other small spaces requiring precise watering management. With a 12V DC power supply and the ability to manually adjust the flow, the valve combines reliability with convenience of use.

Effective operation in a variety of conditions

The valve operates over a wide range of flow rates from 0.05 to 9 m³/h and pressures from 0.5 to 8 bar, making it suitable for both simple and more elaborate installations. Thanks to its ability to withstand liquid temperatures up to 60°C, it can perfectly handle domestic water and diluted soluble fertilizers.

Long life

The fiberglass-reinforced nylon housing provides resistance to mechanical damage and weather conditions, while the EPDM rubber membrane (Ethylene Propylene Diene Monomer, a synthetic rubber with high resistance to weather and chemicals) guarantees tightness and durability. The device is characterized by high resistance to chemical corrosion and cavitation phenomena, which translates into long and trouble-free operation.

Energy saving

Thanks to low power consumption, it is possible to connect several valves in parallel in one system. The solenoid head operates in the DC (Direct Current, direct current) voltage range of 12V ±10% (9-15V), and the control pulse does not exceed 100 ms, which enables effective control with minimal energy consumption.

Ease of use

The valve is equipped with a manual switch and flow control knob for easy testing and setup without having to start the entire system. With clear flow direction markings and compact dimensions (126 x 124 x 90 mm), installation is quick and easy.
